Shift your boundaries and extend horizons with the pinnacle of modern motorhomes.
The Auto-Trail Frontier Delaware sets the standard in quality, innovation and style. It has the most advanced level of specification yet, with further enhancements available using our exclusive packs, and additional features such as a Skyline Panoramic Sunroof and superb, industry leading Climate Control and Soundproofing.
Delaware gives you the best of both worlds – a peaceful rear bedroom with a luxury island bed and an en-suite, as well as a sociable front lounge which incorporates the front swivel seats.
With the fully functioning L-shaped kitchen complete with large Thetford fridge-freezer and domestic style worktops, fixtures, and LED lighting, you can extend your stay as long as you want.
The sociable front lounge that incorporates swivel sweats provides plenty of luxurious space.
Integrating the high quality swivel seats in the Delaware allows for open planned living on the move.
The Auto-Trail Delaware offers the most luxurious bedroom, with island bed and en-suite with high-end fixtures and fittings.
Auto-Trail has spared no expense, with a state-of-the-art digital control panel to give you full control of your motorhome.
To add extra sleeping space, the Auto-Trail Delaware comes with a comfortable fold out bed.
The Auto-Trail Delaware sounds as good as it looks, with an integrated, high quality sound system throughout.
All Auto-Trail models meet the NCC EN1646-1 thermal insulation and heating standard, as a result, the interior of your motorhome can maintain +20ºC even when its a chilly -15ºC or a blistering +40ºC outside. This is the highest standard achievable for motorhomes. Aerodynamic exterior styling ensures air and water are guided around the body.
Auto-Trails industry leading construction is achieved through a structural aluminium extrusion that is bonded and also bolted to the edge of the pressed floor ensures the integrity of our habitation compartments. All models have 40mm insulation in the side walls and 45mm in the floor for superb thermal performance throughout the year. To enhance the look of the vehicle and to add further protection against water ingress, the entire upper cab/roof and rear panel is capped off using GRP moulded panels. The formed panels are bonded in place, with Henkel adhesive, to ensure a watertight seal.
Over the past 38 years, Auto-Trail have developed a unique, innovative, yet proven construction technique that delivers less road noise and more resistance to vibration.
Our ‘Cube’ construction process involves building our habitation units on air suspended platforms, separate to the Fiat or AL-KO chassis. Our ability to join our furniture, walls and roofs together in this manner provides a gapless interior and a reduction in accidental damage caused when working in a confined space. The resulting ‘Cube’ structure is extremely rigid and can be lifted and fixed onto the chassis in one piece. This is bonded into place using a tried and tested Henkel structural adhesive.
All Auto-Trail bonded composite panels consist of a 35mm ‘Styrisol’ internal core. This provides 12% more thermal efficiency than the industry standard.
Lo-line with over cab storage area and skyline panoramic opening window | Free |
Hi-line with over cab sleeping area and skyline panoramic opening window | Free |
Lo-line height m (imperial) | 3.03 (9’11”) |
Hi-line height m (imperial) | 3.10 (10’2″) |
Overall length m (imperial) | 8.05 (26’5″) |
Overall width mirrors folded m (imperial) | 2.35 (7’9″) |
Overall width mirrors unfolded m (imperial) | 2.77 (9’1″) |
Fresh water capacity (ltr) | 135 |
Waste water capacity (ltr) | 85 |
Gas bottle storage (calor propane) (kg) | 2×9 |
Fuel tank capacity (ltr) | 90 |
Max. Gross weight | 4500 |
Max. Gross train weight | 6000 |
Tare | 3420 |
Max. Towing weight (kg) | 1500 |
Tyres | 235/75/R16CP |
Awning size (m) | 4.5 |
Scatter cushions (qty) | 2 |
Fleur luxury upholstery with dress curtains | Included |
Cushioned vinyl floor with removable bound-edged carpets | Included |
Fire retardant upholstery | Included |
Domestic style bathroom taps and shower head/controls | Included |
Domestic style washroom doors | Included |
Fully enclosed seamless shower cubicle | Included |
Variable shower control and riser tower | Included |
Storage cabinet | Included |
Blown air heating outlets to washroom area | Included |
Large mirror | Included |
12v electric flush toilet with removable cassette on wheels | Included |
Fully upholstered height adjustable driver and passenger captain’s seats with twin armrests and swivel seat base | Included |
Techno dash – brushed alloy effect | Included |
Bottle/cup holder and usb charging point | Included |
Air-con cooled water bottle storage | Included |
High level instrument cluster with chrome bezels | Included |
Steering wheel controls for radio and telephone | Included |
Cab air conditioning | Included |
Multi-function trip computer | Included |
Digital clock | Included |
Storage pockets in both cab doors | Included |
Pleated blinds to cab windows | Included |
Folding tablet/smartphone holder to dashboard | Included |
Colour touchscreen dab radio with aux/usb/ipod connection and bluetooth hands free system (media pack) | $ Cost option |
Colour reversing camera integrated into touchscreen head unit (lifestyle pack) | $ Cost option |
19.5″ avtex widescreen tv/dvd player (media pack) | $ Cost option |
Fresh/waste water tank gauge (colour touch screen on tracker, apache & frontier range) | Included |
Pressurised water system | Included |
10 year body construction integrity warranty (t&c’s apply) | Included |
5 year fiat warranty for chassis (t&c’s apply) | Included |
Grade 3 insulation | Included |
Full vinyl underfloor protection | Included |
Laminated wall construction (full thickness = 40mm) | Included |
Laminated floor construction (full thickness = 45mm) | Included |
Laminated roof construction (full thickness = 40mm) | Included |
Exterior storage/access locker | Included |
Leisure Battery 92ah | 2 |
100w solar panel | Included |
Cruise control with speed limiter | Included |
Abs braking | Included |
Disc brakes front and rear | Included |
Central locking (to cab and habitation door) | Included |
Fitted engine immobiliser | Included |
Compliant to all relevant au standards | Included |
Flame failure shut-off valves to all gas appliances | Included |
Isolation taps to all gas appliances | Included |
Smoke alarm/co2 alarm | Included |
Fix and go tyre repair kit | Included |
Fire extinguisher | Included |
Choice of 6 external colours (white, grey , silver, black, red, gold) | $ Cost Option (Contact Us) |
Fiat ducato chassis type | AL-KO Fully Galvanised |
Wheel Base (MM) | 4461 |
Drive | Front |
Number of cylinders | 4 |
Number of gears (forward) | 9 |
Intercooler | Included |
160 mulitjet ii euro 6d max. Torque 400nm@1500rpm | N/A |
180 mulitjet ii euro 6d max. Torque 450nm@1500rpm | Standard |
Fiat fully automatic 9 speed gearbox | Standard |
Max. No. Of berths | 6 (Hi-Line) |
Over cab (hi-line only) m (imperial) no cost option (included as standard on imala 625 and apache 634) | 1.89×1.18 (6’2″x4’0″) |
Rear double M (imperial) | 1.97×1.43 (6’5″x4’7″) |
Front double M (imperial) | 2.08×1.22 (6’8″x4’0″) |
Flush fitting 4 ring hob (3 x gas, 1 x 800w electric), full oven/grill and pan store | Included |
Thetford fridge freezer | Included |
Fully fitted 800w microwave | Included |
Cutlery storage | Included |
Domestic style single lever mixer taps | Included |
Domestic style worktops and soft close drawer system | Included |
Inset sink with flush-fitting glass lid | Included |
Easy access to bed boxes | Included |
Moyet oak solid plywood interior furniture | Included |
Two tone upper locker doors | Included |
Pleated fly screens/blinds to all opening windows | Included |
Free standing table | Included |
Metal rollerball drawer runners | Included |
Circular table and boom arm | Included |
Double glazed windows with pleated flyscreens and blinds | Included |
Panoramic roof light (available on lo-line & hi-line) | Included |
Ambient concealed led over locker lighting | Included |
12v under locker led reading lights | Included |
230v socket(s) | Included |
Coaxial tv aerial, 12v and 230v socket | Included |
Engine battery condition indicator | Included |
Transformer/charger | Included |
Leisure battery condition indicator (volts) | Included |
Rcd unit | Included |
Combi 4kw gas 230v heater/hot water 12v blown air incl. Digital control panel | Included |
Brushed aluminium front grille and lower skid plate | Included |
Chrome headlamp surrounds | Included |
Grp high gloss aerodynamic over-cab roof moulding | Included |
Grp high gloss scratch/damage resistant side walls | Included |
Distinctive auto-trail exterior graphics | Included |
Acrylic capped abs side skirts | Included |
Colour coded front bumper | Included |
Rear mud flaps | Included |
Integral moulded entrance step with removable mat | Included |
High security entrance door with central locking with blind, waste bin, flyscreen and auto-trail umbrella storage | Included |
Electrically operated step | Included |
Adjustable, electrically operated heated exterior mirrors with blind spot mirror | Included |
Electrically operated cab windows | Included |
External gas bbq point | Included |
Roof styling bars (not load bearing) | Included |
Omnidirectional aerial (lifestyle pack) | $ Cost Option |
Witter cycle carrier – designed to carry 2x electric bikes (60kg max weight) | $ Cost Option |
Daytime running lights (drls) to headlamps | Included |
Led exterior awning light | Included |
Led front marker lights | Included |
Led front marker lights | Included |
Led rear marker lights | Included |
Side running lights | Included |
3rd high level brake light | Included |
Double glazed windows with pleated fly screens and blinds | Included |
Panoramic roof light (available on lo-line & hi-line) | Included |
All Delaware models come with two distinct body styles at no extra cost, Hi-Line and Lo-Line, both featuring sunroof as standard.
Lo-Line configuration generally suits couples better, providing extra storage for longer touring trips, while the hi-line’s extra over-cab bed is often favoured by families or those who will be entertaining on their travels.

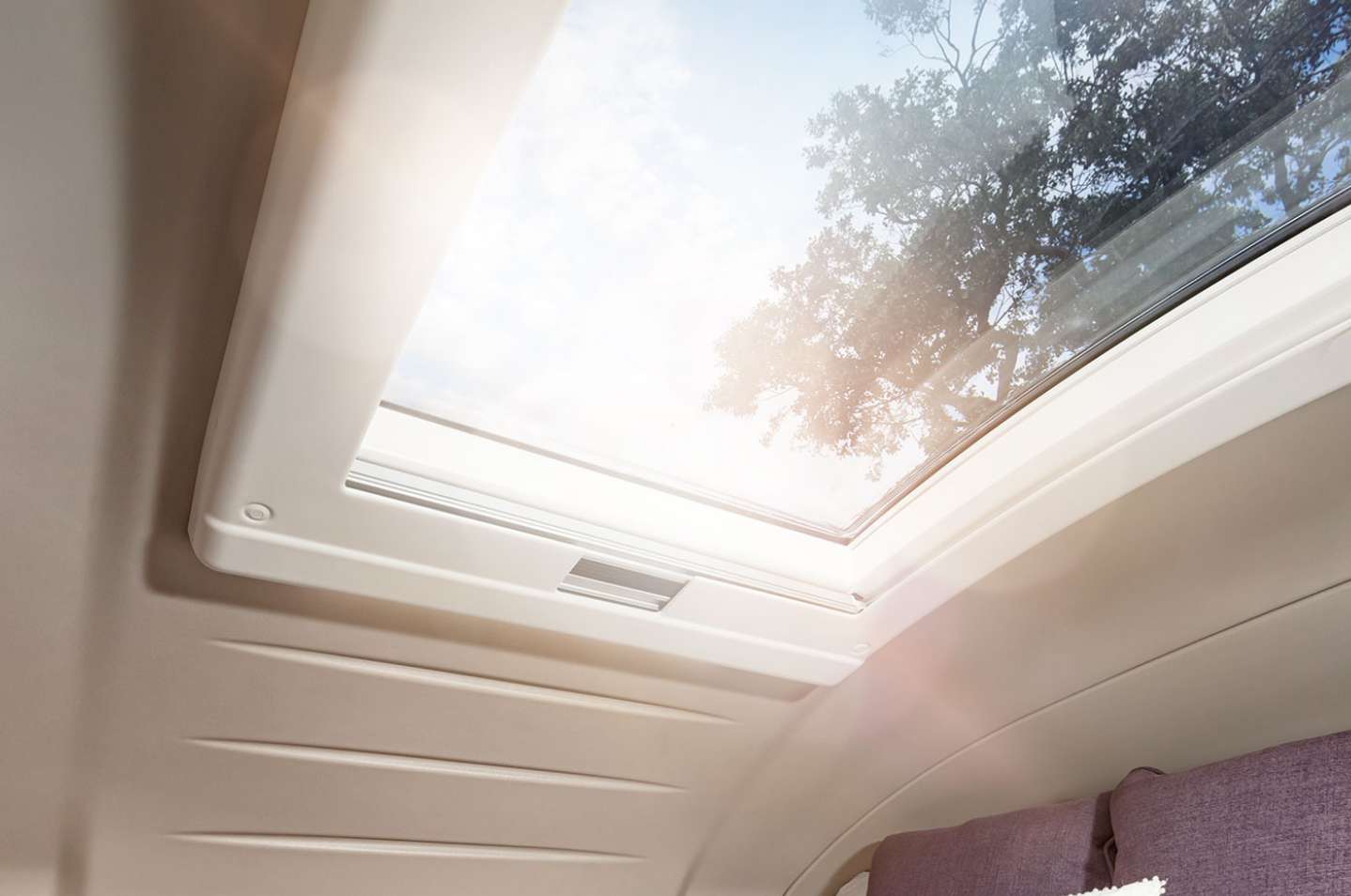

The Lo-Line is an outstanding example of modern motorhome design with sleek exterior styling creating an aerodynamic shape and incorporating a large panoramic Skyline sunroof. Ideal for customers who prefer accessible integrated storage areas above the cab space in lieu of an over-cab sleeping area.
The Hi-Line variant also features the unique Skyline sunroof. The overcall area has been designed to accommodate a large double bed. Every inch of space has been fully utilised to provide a large and comfortable sleeping area. During the day, this sleeping area can quickly slide away, enabling you take use the space.
Since the late 1990s, Auto-Trail has been a proud member of the Trigano Group, a global leader in the leisure vehicle industry.
Stylist, full coordinated interiors. We pride ourselves on our attention to details, our precision design and engineering.
All Auto-Trail Motorhomes use the superb Fiat Ducato RV chassis. An extra wide rear axle significanty reduces body roll and a cab designed for comfort offers car like handling and a superb driving experience.
We guarantee your comfort all year round with a range our premium features, including grade 3 insulation proven to keep you warm in winter, and cool in summer.
